Nimble Wall Controller

Part number: C110WC

Overview

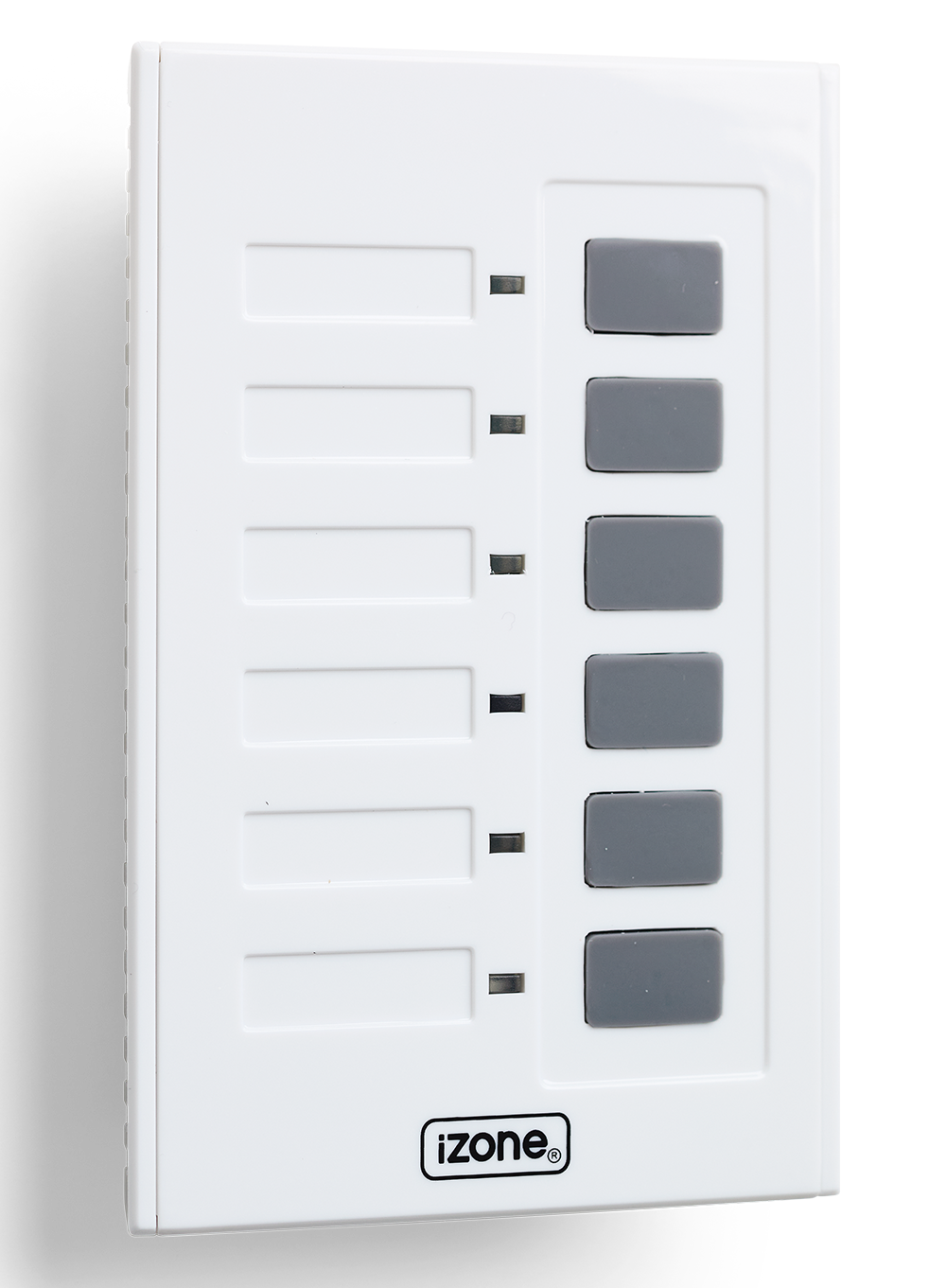

The C110WC is the simple push-button wall controller for the Nimble Zone Control kit (C110K). Features 6 illuminated zone buttons for open/close control. Connects to the Nimble Master Controller (C110MC) via CAT5 cable.

Installation Guides

• Install the wall‑controller bracket in an appropriate location.
• Run the CAT5 cable through the wall and connect it to the back of the wall controller.
• Label all zones using the stickers provided.

User Guides

• Press the button to open/close a zone.
• The LED will illuminate when the zone is open

Troubleshooting

• Zones not responding correctly or damper fault

Specifications

Specification	Description
Power supply	CAT5 from the Nimble Master Controller (C110MC)
Power and communication	RJ45
Communications	RS485
Number of zones	1 to 6
Dimensions	21H x 81W x 122L mm (excludes RJ45 connector)
Weight	108g

Firmware and Updates

C110WC 1.00

• First release
