Nano Touch Screen
Part number: CCTSSW
Overview

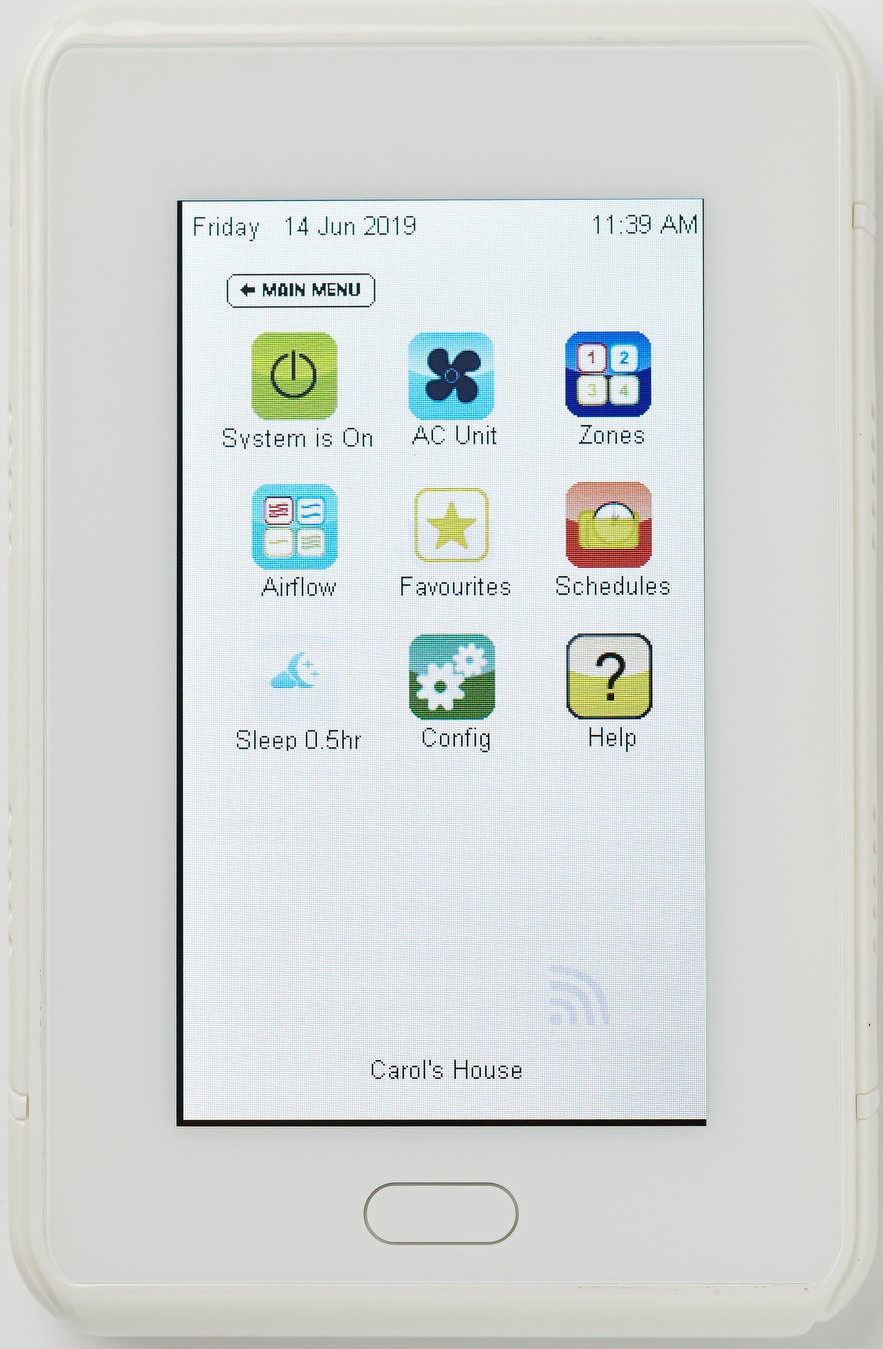

The CCTSSW is the compact Nano touch screen wall controller used in Nano-based kits. Connects to the CPU Module (C225) via a CAT5 cable.
Installation Guides
Mount in a standard wall box. Run CAT5 from the C225 iZone Net port to the CCTSSW location and connect the RJ45 to the rear of the device. Power on the C225 and complete commissioning via the CCTSSW. Refer to the relevant kit installation guide for commissioning steps.
User Guides
Troubleshooting
Specifications
| Specification | Description |
|---|---|
| Power supply | From CPU Module (C225), Network Extension Module (CNEM) or Multiplexer (CISM) |
| Screen orientation | Landscape / Portrait |
| Screen graphic options | Classic |
| Power & communication | RJ45 |
| Communications | CAN |
| Operating temperature | Room temperature |
| Screen | TBD |
| Dimensions | 12H x 90W x 120L mm |
| Weight | 150g |
Firmware and Updates
Firmware history and release notes will be added here. For now, firmware details are placeholders.
