Brivis

Module used to integrate with a Brivis AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.

Brivis StarPro Series only​

Compatibility​

SERIES & kWINDOOROUTDOORMODULE
Brivis StarPro Series onlySP421INV4
SP421ENV4
SP430INV4
SP430ENV4
SP435INV4		SP521EN
SP521EN-XA
SP521IN
SP521IN-XA
SP530EN
SP530EN-XA
SP530IN
SP530IN-XA
SP535IN		SP615IN
SP623EN
SP623EN-XA
SP623IN
SP623IN-XA
SP630EN
SP630EN-XA
SP630IN
SP630IN-XA
SP635IN		DONSC10Z1
DONSC13Z1
DONSC15Z1
DONSC17Z1		CRA325BV

CUCM

Connection​

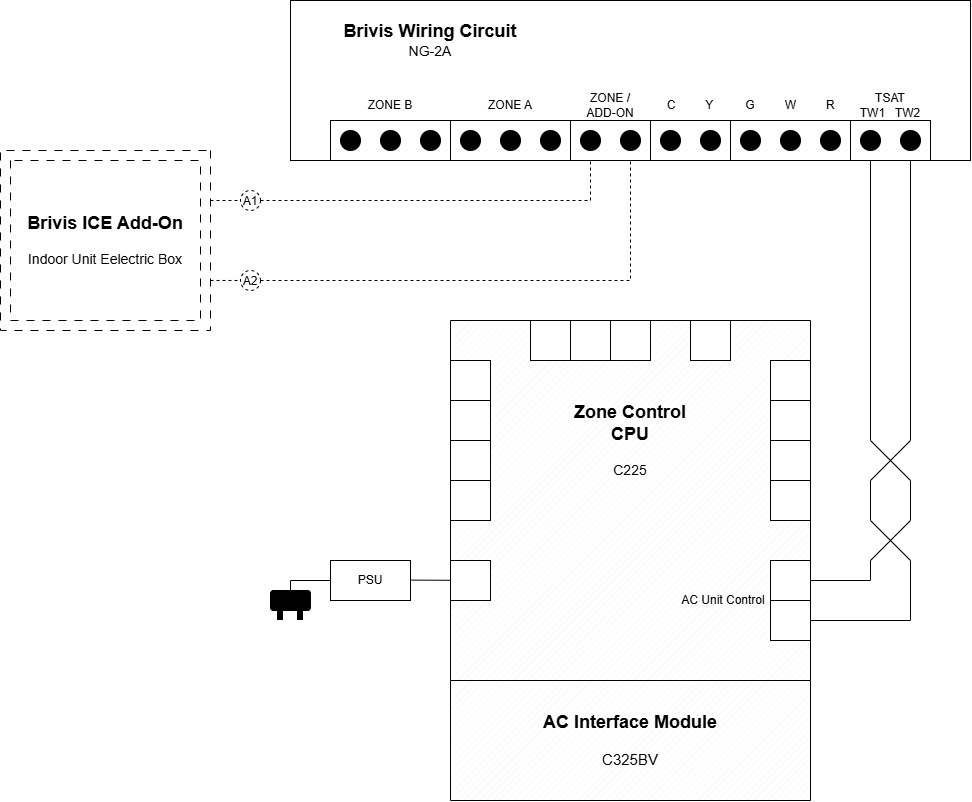

For TW1/TW2 connection​

  • Polarity is not critical.
  • 6 fan speed
  • A 2-core twisted pair control cable must be connected from the C225 / CRA325BV controller to the TW1/TW2 (TSAT) port on the fan coil unit. The cable is not supplied by iZone. Connect the AC unit communication cable from the fan coil unit to the C225 as indicated below:

CONNECTION WIRING

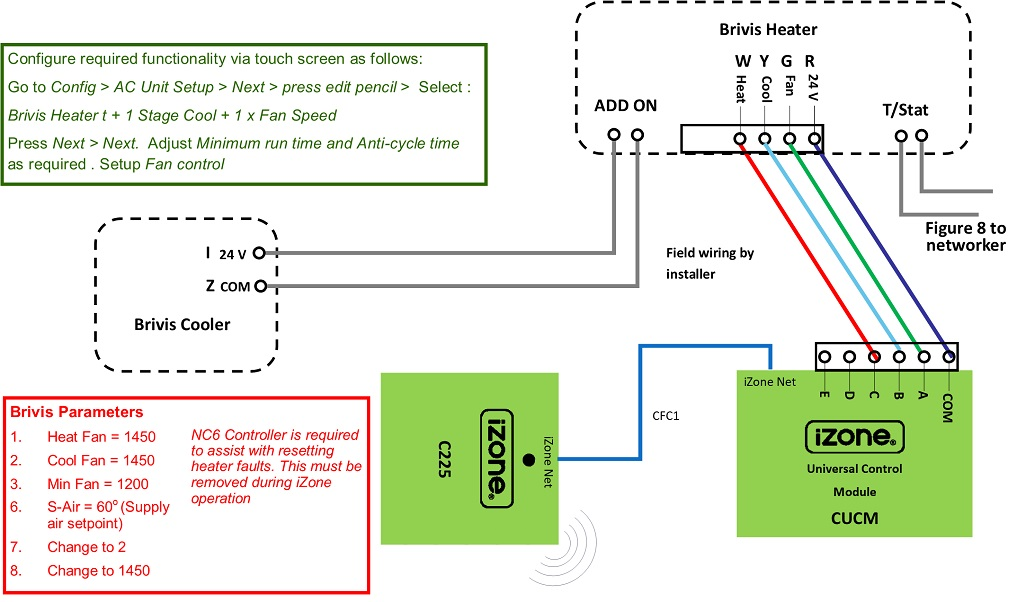

For RWGY connection​

Notes​

None

Firmware and Updates​

CRA325BV​

CRA325BV 1.0 - June 2024​

  • First release

CUCM​
