Daikin

Module used to integrate with a Daikin AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.

Ducted AC units​

Compatibility​

SeriesIndoorOutdoorAC Unit module
PREMIUM INVERTER SINGLE PHASEFDYA71AV19
FDYA85AV19
FDYA100AV19
FDYA125AV19
FDYA140AV19
FDYA160AV19
FDYA180AV1
RZAS71C2V1
RZAS85C2V1
RZAS100C2V1
RZAS125C2V1
RZAS140C2V1
RZAS160C2V1
RZAS180DV1
C325D2
PREMIUM INVERTER THREE PHASEFDYA180AV1
FDYA200AV1
FDYQ250LCV1
FDYQ180LCV1
FDYQ200LCV1
FDYQ250LCV1
RZAS180DY1
RZAS200DY1
RZYQ10TY1
RZYQ7TA2Y1
RZYQ8TAY1
RZYQ10TAY1
C325D2
INVERTER SINGLE PHASEFDYAN50AV1
FDYAN60AV1
FDYAN71AV1
FDYAN85AV1
FDYAN100AV1
FDYAN125AV1
FDYAN140AV1
FDYAN160AV1
RZA50C2V1
RZA60C2V1
RZA71C2V1
RZA85C2V1
RZA100C2V1
RZA125C2V1
RZA140C2V1
RZA160C2V1
C325D2
INVERTER THREE PHASEFDYAN71AV1
FDYAN85AV1
FDYAN100AV1
FDYAN125AV1
FDYAN140AV1
FDYAN160AV1
FDYQN180LCV1
FDYQN200LCV1
FDYQN250LBV1
FDYQN180LBV1
RZA71C2Y1
RZA85C2Y1
RZA100C2Y1
RZA125C2Y1
RZA140C2Y1
RZA160C2Y1
RZQ180M2Y1
RZQ200MY1
RZQ250LY1
C325D2
FBA SLIMLINE SINGLE PHASEFBA50BAVMA
FBA60BAVMA
FBA71BVMA
FBA85BVMA
FBA100BVMA
FBA125BVMA
FBA140BVMA
FBA71BVMA
FBA85BVMA
RZAV50C2V1
RZAV60C2V1
RZAV71C2V1
RZAV85C2V1
RZAV100F2V1
RZAV125F2V1
RZAV140F2V1
RZAC71C2V1
RZAC85C2V1
C325D2
FBA SLIMLINE THREE PHASEFBA71BVMA
FBA85BVMA
FBA100BVMA
FBA125BVMA
FBA140BVMA
FBA85BVMA
RZAV71C2Y1
RZAV85C2Y1
RZAV100F2Y1
RZAV125F2Y1
RZAV140F2Y1
RZAC85C2Y1
C325D2
FDYBA BULKHEAD SINGLE PHASEFDYBA25AV1
FDYBA35AV1
FDYBA50AV1
FDYBA60AV1
FDYBA71AV1
RZAC25G2V1
RZAC35G2V1
RZAC50G2V1
RZAC60G2V1
RZAC71G2V1
C325D2
note

If your unit's model number is not listed above, contact supportdesk@izone.com.au to confirm compatibility.

Connection​

  • Polarity is not critical
  • Connect iZone Unit Control Cable port to the P1 and P2 terminals in the Daikin FCU.
  • Shielded cable: Shielded, 2 core, twisted pair cable must be used and is not supplied by iZone

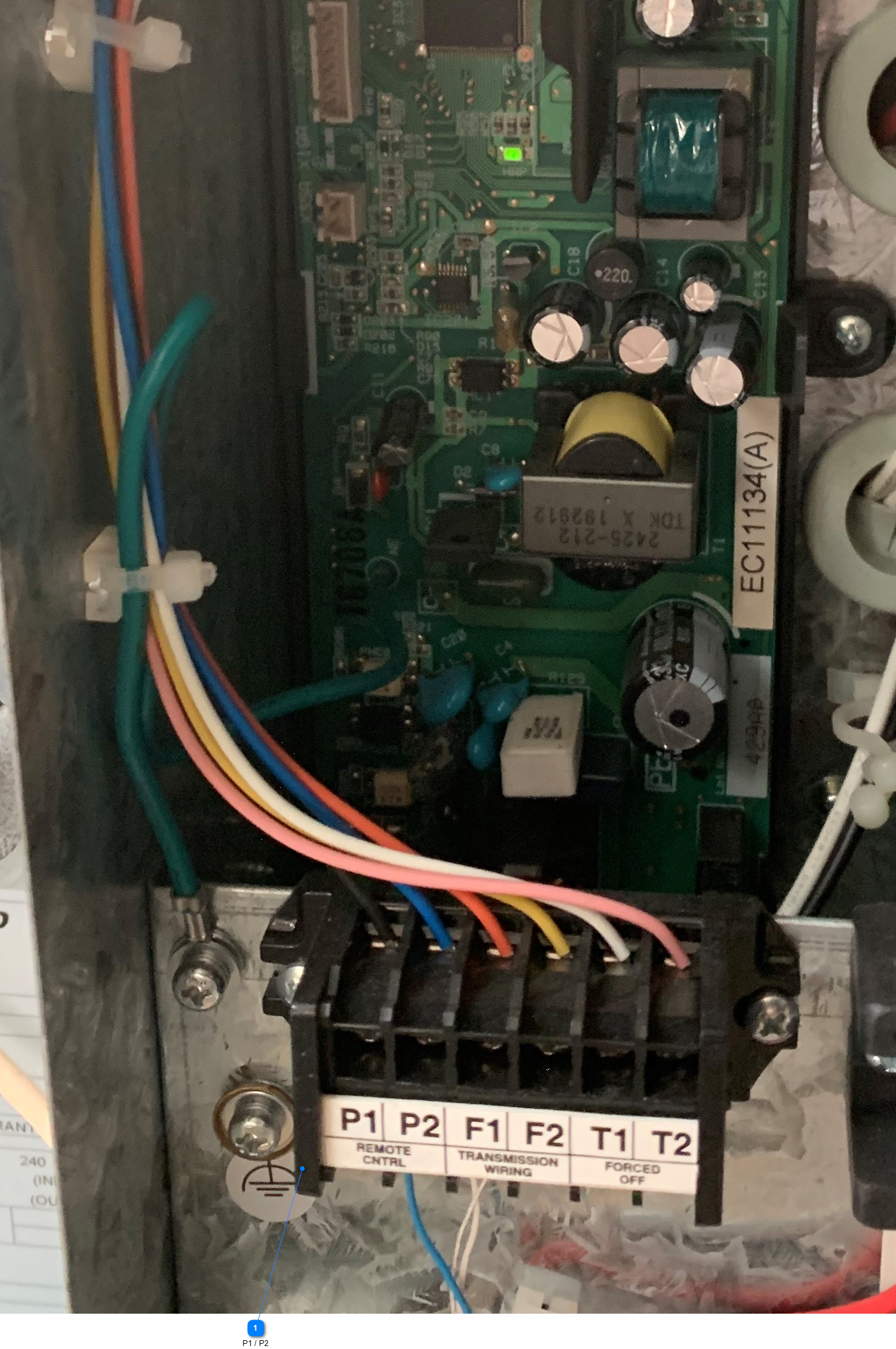

DAIKIN PCB

DAIKIN PCB

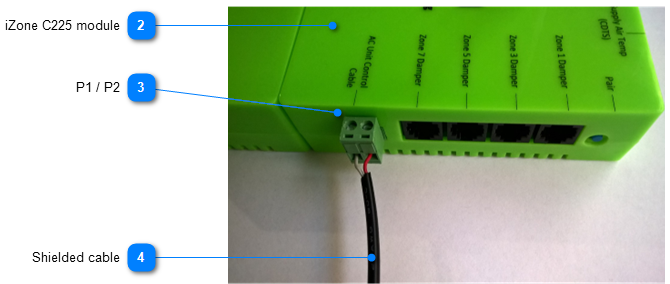

DAIKIN Wiring
DAIKIN Wiring

Notes​

  1. For 20 kW and above, make sure you have the Daikin controller onsite, connect it to the unit and carry out a test run first, confirm the unit running before connecting and wiring iZone system to the unit.
  2. Daikin Error Codes Search WEB
  3. Daikin Ducted Systems Brochure PDF

For VRV Systems​

Compatibility​

SeriesIndoorOutdoorAC Unit module
Ducted (High Sensible)FXMQ###-PAVEC325D2
note

If your unit's model number is not listed above, contact supportdesk@izone.com.au to confirm compatibility.

Connection​

  • Polarity is not critical
  • Connect iZone Unit Control Cable port to the P1 and P2 terminals in the Daikin FCU.
  • Shielded cable: Shielded, 2 core, twisted pair cable must be used and is not supplied by iZone

See Wiring diagram VRV systems for further infomation.

C325D Setup Tips​

  1. Remove the iZone controller from the P1/P2 connection.
  2. Turn off the power to the unit/condenser for 15 minutes.
  3. Connect the Daikin controller to the unit while the power is off.
  4. After the 15 minutes, turn the unit back on and put the unit through the test cycle (usually takes around 15 minutes but could take longer).
  5. After the test mode, confirm that the unit runs in both HEAT and COOL.
warning

DO NOT power cycle the unit at this time.

  1. Turn off the unit via the Daikin controller ("stop the fan from running").
  2. Remove the Daikin controller and connect the iZone controller via the P1/P2 connection.
danger

If using the C325D2 module, the iZone system should connect normally and not require the above procedures.

Setup procedure before installing the iZone controllers​

The contractor must commission and run TEST mode on the Daikin VRV system as per Daikin's standard procedure. During this process, Daikin wired controllers must be connected to EACH Fan Coil Unit.

  • After commissioning, and the test run/addressing procedures have been completed, use the Daikin remote controller for each Fan Coil Unit to set up static pressures and other relevant parameters required for each Fan Coil Unit.
  • Once all the parameters have been set, one remote controller/Fan Coil Unit will have to be set as the Master or Primary unit.
  • Decide which Fan Coil Unit/remote controller will be the primary unit. Usually this will be the living area. This Fan Coil Unit/remote controller needs to be set as the Master or Primary.
  • All remote controllers should have the selection eligibility icon flashing at the top of the screen.
  • To set the Fan Coil Unit/remote controller as the primary system (Selection Eligibility), press Mode once; this will turn on the back light. Then press the MODE selector a second time. The icon will disappear from the primary remote controller. Once the flashing icon has disappeared from the remote controller screen, this remote is the Primary Controller.
  • The icon will appear on the other remote controllers, which denotes it is a secondary controller. (See the Daikin documentation on how to set Controller Eligibility.)
  • Once the above procedures have been completed, ONLY then disconnect the Daikin remote controllers and install the iZone CPU and controllers.
  • If iZone controllers are installed before the above procedures are completed, and the Daikin remote controllers are disconnected while the icon on each remote controller is flashing, the Fan Coil Units will operate, however the condenser will not start.

Notes​

  1. Daikin Wall Controller (BRC) support:
    1. Set Daikin controller to SUB mode -
      • Remove iZone controller from the P1/ P2 connection
      • Connect the Daikin controller
      • Go to Service Setting (hold bottom right button) → Switch Main Sub Controller
      • Select Sub RC
    2. Connect iZone controller from the P1/ P2 connection. Polarity is not critical.
    3. Connect Daikin controller P2/P1 -> P1/P2 connections. Polarity critical when connected with C225.
      • If controller is reading “Checking the connection. Please stand by.”
      • Try switching the P1/P2 connections.

Firmware and Updates​

C325D2 1.9 - Mar 2026​

  • Fixed an issue where static pressure messages were processed even when static pressure control was not supported by the Daikin unit.

C325D2 1.7 - Jan 2026​

  • Updated static pressure setting to support 15 selectable levels (require C225, v3.76, CVRFH 1.2, CCTSL 2.36, COCBH 4.34, NOVA 1.21 or greater)
  • Add ability to use Daikin BRC controller and iZone controller at the same time (require C225 3.76, CVRFH 1.2, NOVA 1.21 or greater)
  • Improved handling of MSG3A and MSG3B communication messages

C325D2 1.4 - Dec 2024​

  • Added support for VRF control (require C225 v3.69, CVRFH: v1.0, COCBH v4.29, NOVA 1.09)

C325D2 1.3 - Mar 2024​

  • Fix issue when AC connected and working but status is no comms

C325D2 1.2 - Nov 2022​

  • Improved message detection
  • Get more temperature information from the AC unit
