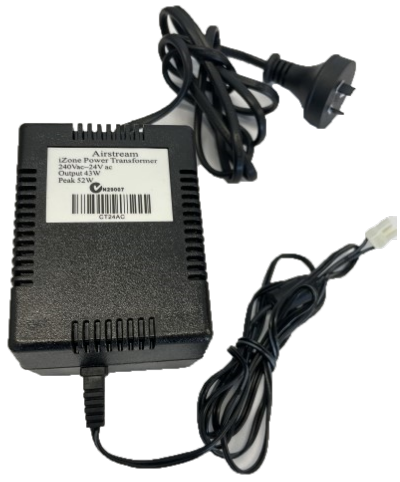

24VAC CPU transformer
Part number: CT24ACE
Overview
The CT24ACE is the primary power supply for iZone C225-based systems. Converts 240VAC mains power to 24VAC and powers the C225 CPU, all zone dampers, connected modules, and touch screens.
Installation Guides
note
Do not hard-wire the CT24ACE into the AC unit's power supply. It must be powered from an earthed AU GPO on a separate circuit. Violating this may void warranty.
- 🔗 Nova CAT kit
- 🔗 Nova DC kit
- 🔗 Nexus kit
- 🔗 Naked 8-zone kit
- 🔗 Nano kit
User Guides
None
Support
None
Specifications
| Entry | Description |
|---|---|
| Input | 240V ~ 50Hz |
| Output | AC 24V, 1800mA, 43W (52W peak) |
| 240V lead length | 1400 mm |
| 24V lead length | 1400 mm |
| Number of zones | 0 to 8 (RJ11/RJ12 connectors) |
| Dimensions | H: 65mm · W: 75mm · L: 99mm |
| Weight | 1285 g |
Firmware and Updates
None
