Navi Zone Control Kit
Part number: C265K
Overview

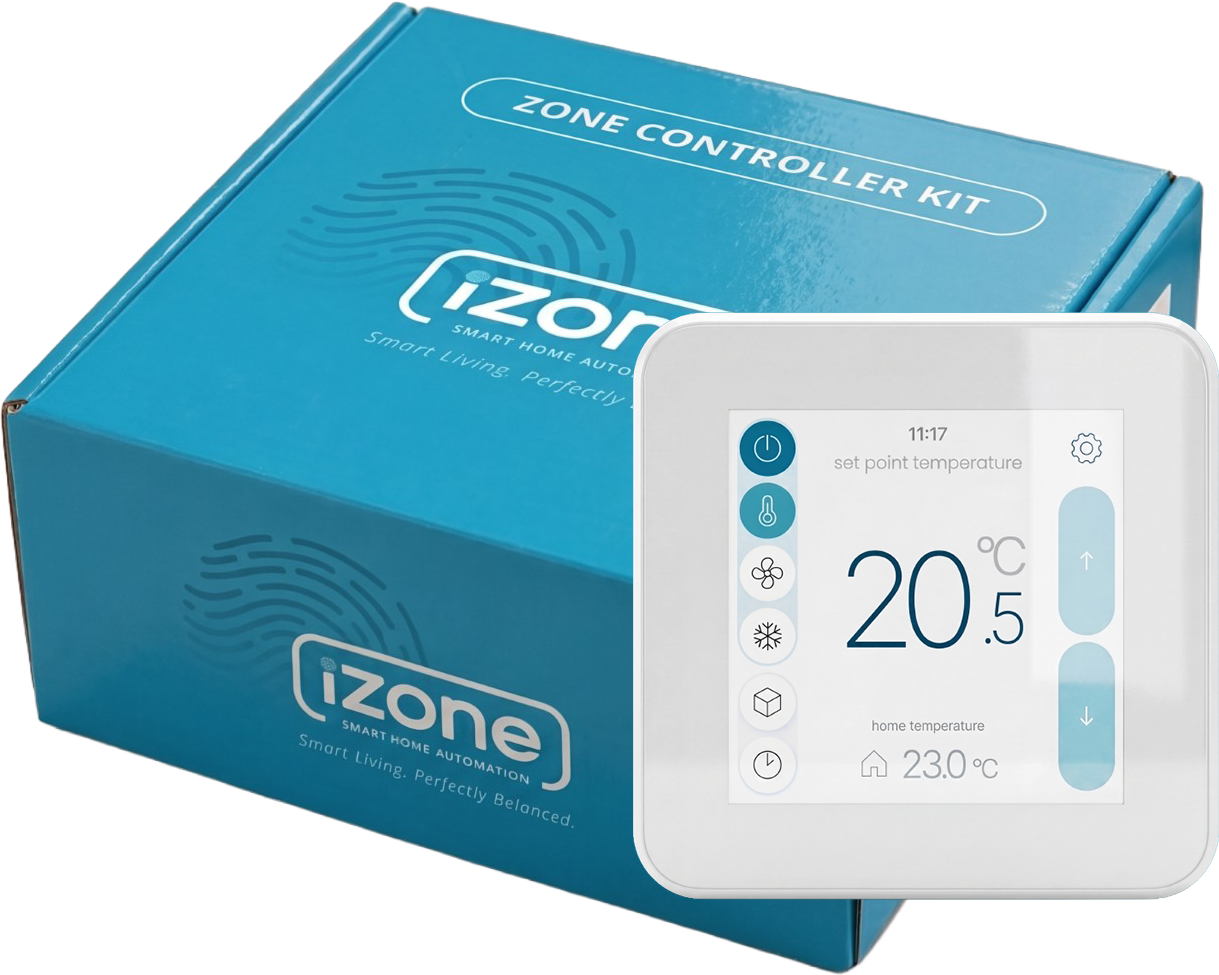

The iZone Navi climate control zone kit uses a CAT5 connection between the Screen Link Module (CSL) and the 4.3" Navi wall controller (CNAW). Wi-Fi connectivity is built directly into the wall controller, enabling mobile control and remote diagnostics. As a result, the kit does not require a Smart Hub (COCBH). It is not possible to pair Wireless Temperature Sensors (CRFSW) to a Navi zone control system.
Installation Guides
New installation
- Navi setup guide LINK
- Quick installation guide PDF
Advanced installation
- Add multiple Navi screens
- Upgrade Navi to a Nova system
- Use Navi has an indvidual room controller
User Guides
- Navi user manual PDF
- Navi user guide LINK
- Navi product brochure PDF
- Navi mobile registration steps LINK
- Navi mobile interface user manual LINK
Parts Included
| Part | Description |
|---|---|
| C156 | 8-zone Light CPU |
| CT24ACE | 24Vac CPU power supply |
| CSL | Screen Link Module |
| CNAW | Navi 4.3" wall controller |
| CDTS | In-duct temperature sensor |
| CFC12S | 12m CAT5 cable |
Support
- For troubleshooting, refer to the Parts Included section.
- For frequently asked questions (FAQs), visit the Support Zone.
- For design guidance and best practices, see the How to Guides.
Specifications
| Specification | Description |
|---|---|
| Dimensions | 163W x 193H x 155D mm |
| Weight | 2.69kg |
