Module used to integrate with a LG AC unit. The iZone AC unit module (C325#) connects to the CPU module (C225) to enable communication with a ducted AC unit.

HIGH STATIC DUCTED R410A​

Compatibility​

SeriesIndoorOutdoorAC Unit module
HIGH STATIC DUCTEDB30AWYN7G6B30AWYU4G6C325L2
HIGH STATIC DUCTEDB36AWYN7G6B30AWYU4G6C325L2
HIGH STATIC DUCTEDB42AWYN7G6B30AWYU4G6C325L2
HIGH STATIC DUCTEDB55AWYN7G6B30AWYU4G6C325L2
note

If your unit's model number is not listed above, contact supportdesk@izone.com.au to confirm compatibility.

Connection​

  • Wire the C225 / C325L2 AC Unit Control Cable port to the LG unit fan coil unit wired controller control port pins as depicted by black and yellow cables in picture below.

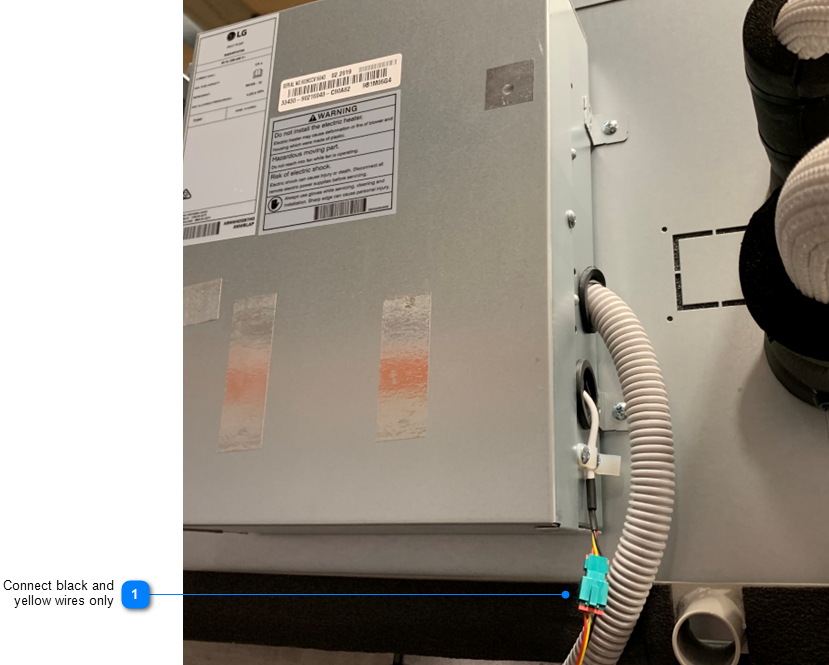

LG B##AWYN7G6 wiring

Notes​

  • When using the LG communication cable PZCWRCG3 (not supplied by iZone) to wire LG fan coil unit to iZone device:
    • Use the yellow and black cables for the connection.
    • Red cable is not required for iZone connection.
    • Polarity is not critical.

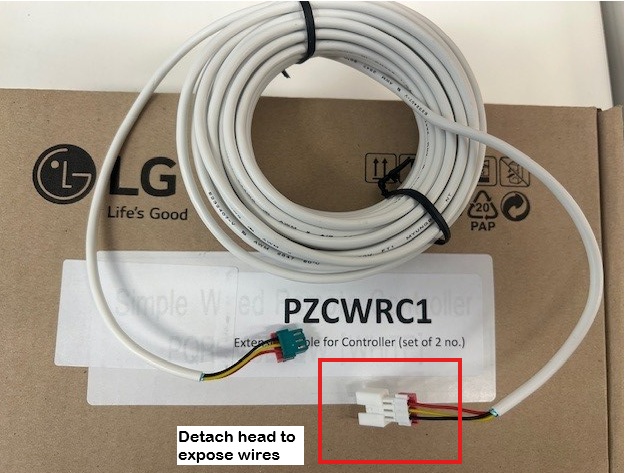

LG2 wiring cable

CEILING CONCEALED DUCT​

Compatibility​

SeriesIndoorOutdoorAC Unit module
CEILING CONCEALED DUCTB30AWYN7G5B30AWYU4G5C325L*
CEILING CONCEALED DUCTB36AWYN7G5B36AWYU4G5C325L*
CEILING CONCEALED DUCTB42AWYN7G5B42AWYU3G5C325L*
CEILING CONCEALED DUCTB55AWYN7G5B55AWYU3G5C325L*

* The following interface has now been superseded by the C325L2 interface. The information provided below is for existing systems that are still in the field and may require maintenance or repairs

note

If your unit's model number is not listed above, contact supportdesk@izone.com.au to confirm compatibility.

Connection​

  • Polarity is not critical
  • Connect a shielded, 2 core, twisted pair control cable from the C225 to the PI485 Gateway (M) board in the condensing unit. This cable and PI485 Gateway board are NOT supplied by iZone.
  • A - B wire: Connect the unit communication cable from C225 to A-B terminals on the PI485 PCB in the condensing unit.

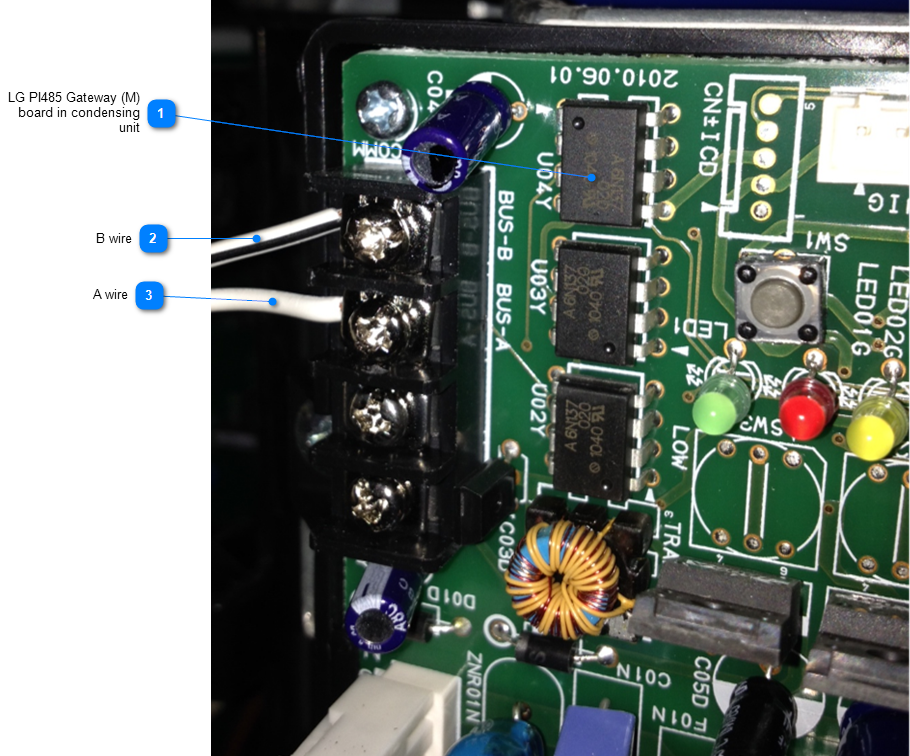

LG B##AWYN7G5 PCB

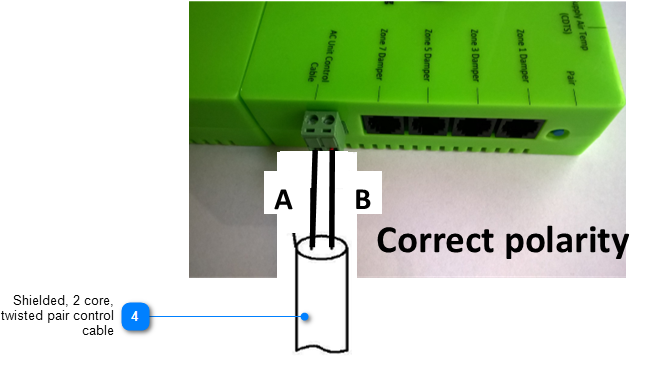

izone A B wiring

Notes​

  • Required LG PI485 Gateway (M) board in condensing unit supplied by LG as an optional extra and must be ordered with the AC unit.

Firmware and Updates​

C325L2​

C325L2 1.1 - Jun 2022​

  • First release

C325L​

  • No firmware
