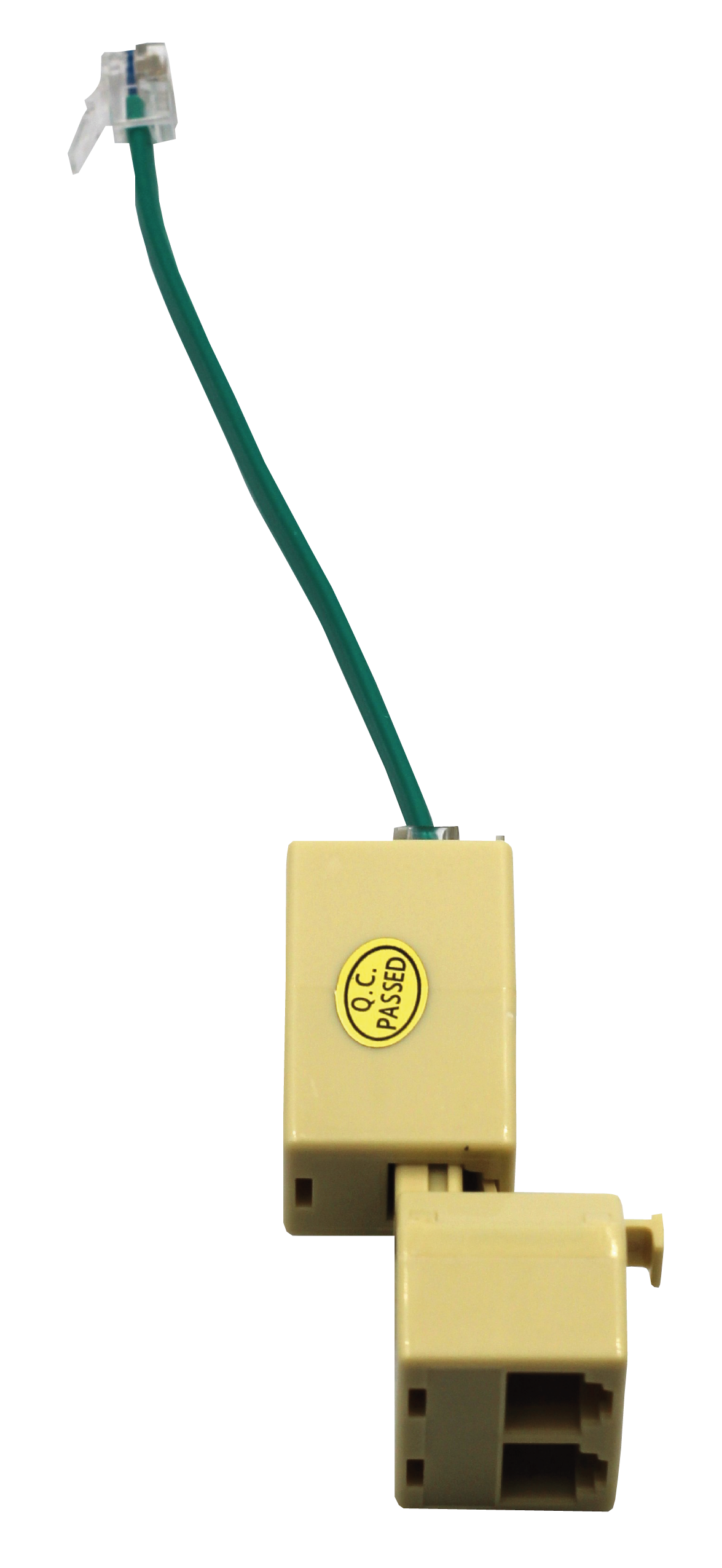

Zone double adapter
Part number: CDAK6
Overview
The CDAK6 is a double adaptor to drive two damper motors to be driven from a single zone port on the CPU Module (C225), 6-zone Naked CPU module (C150) or Extender Module (CEXT).
Installation Guides
Connect the RJ12 connector into one of the zone damper ports. The other end makes two zones available. Both zone dampers are driven from a single damper port.
User Guides
The CDAK6 is a passive device and does not require any configuration or user interaction after installation.
Troubleshooting
No known issues.
Specifications
| Specification | Description |
|---|---|
| Power supply | From the C225 module |
| Casing material | Fire retardant ABS plastic |
| Connectors | 1 male RJ12 and 2 female RJ12 ports |
| Dimensions | 38H x 26W x 61L mm |
| Weight | 16g |
Firmware and Updates
No firmware information
