Nexus zone control system
Part number: C430+K
Overview

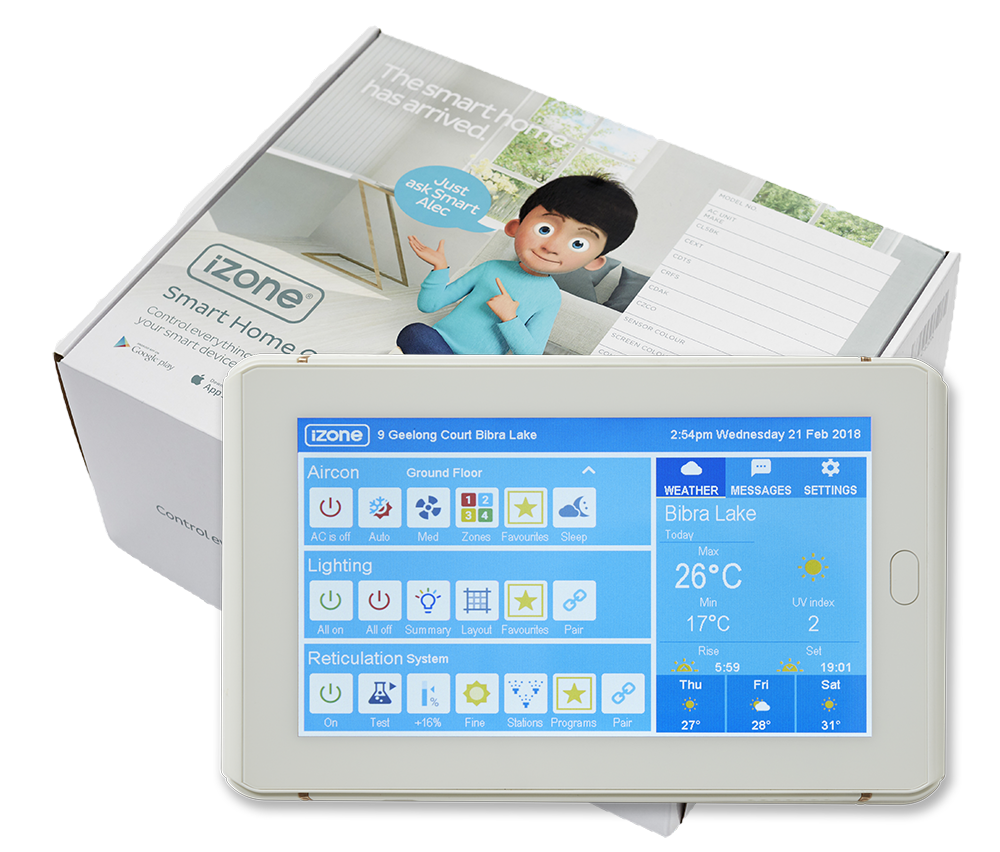

The iZone Nexus climate control kit consists of a Central Processing Unit (CPU) module connected to an embedded 7″ colour touchscreen for local system control. It supports 8 zones as standard, with the ability to expand up to 14 zones by adding a zone extender module (CEXT). A Smart Hub (COCBH) can also be integrated to enable convenient control and monitoring of the system via a mobile device.
Installation Guides
Standard installation
📄 Quick Install Guide
🔗 Online Installation Guide
📄 Installation manual
Advanced installation
- Install multiple Nexus screens
- Install multple AC indoor/outdoor units
- Install a VRF system
- How to add more zones (9-14 zones)
- Hardwire CPU and Smart Hub
User Guides
Parts Included
| Part | Description |
|---|---|
| C225 | 8-zone CPU |
| CT24ACE | 24Vac CPU power supply |
| CCTSLW+ | Nexus 7" touch screen |
| CDTS | In-duct temperature sensor |
Support
- For troubleshooting and frequently asked questions, refer to each individual part within Parts Included
- For design guides, see How to Guides
Specifications
| Entry | Description |
|---|---|
| Dimensions | 320W x 140H x 300D mm |
| Weight | 3.120kg |
