Wireless zone sensor
Part number: CRFSW
Description

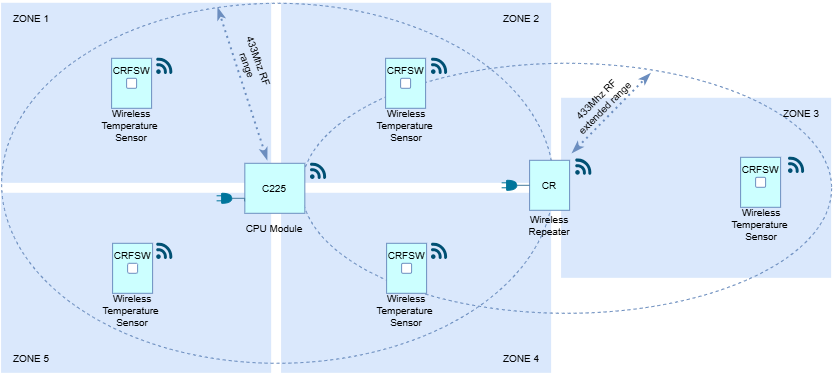

The CRFSW is a wireless temperature sensor for zone-based climate control. Mounted on the wall in each zone, it measures room temperature and allows the zone to be turned on or off by pressing the button. Available in White (CRFSW), Black (CRFSB), and Ocean Mist (CRFSO).
Installation guide
Step-by-step pairing guide
- Mount at approximately 1600mm above floor level
- Keep away from draughts, direct sunlight, and heat-generating equipment
- Supply air must not blow directly onto the sensor
- The CDTS in-duct sensor must be installed before pairing zone sensors
Pairing to C225
- Set the zone selector switch to the correct zone number (1–14)
- Remove the sensor cover using a flathead screwdriver
- Remove the battery tab (new sensors) or verify CR2032 battery is installed
- Press and hold the PAIR button on the sensor
- Simultaneously tap the Pair icon on the wall controller — blue LED flashes rapidly
- Wall controller confirms pairing
Specifications
| Entry | Description |
|---|---|
| Model numbers | CRFSW (white) · CRFSO (ocean mist) · CRFSB (black) |
| Power supply | CR2032 battery (included) |
| Battery life | ~1–2 years |
| Communications | RF 433MHz wireless (iZone proprietary) |
| Range | ~100m free field |
| Dimensions | H: 18mm · W: 72mm · L: 116mm |
| Weight | 92 g (excluding battery) |
Controls & indicators
| Button (front) | Press to turn zone ON (blue LED) or OFF (red LED) |
| Flashing red/blue | Sensor has not received confirmation from C225 — check pairing and range |
| Zone selector switch | Set to the zone number (1–14). Set to "R" when using RF as the controlling sensor |
| Pair button (PCB) | Press and hold to pair sensor to the C225 |
Included in
Sold separately. Not included in any standard kit. Compatible with all C225-based systems.
Related parts
Documents
Troubleshoot guide
Read more
Firmware history
No firmware — the CRFSW is a battery-powered RF sensor with no embedded software.
