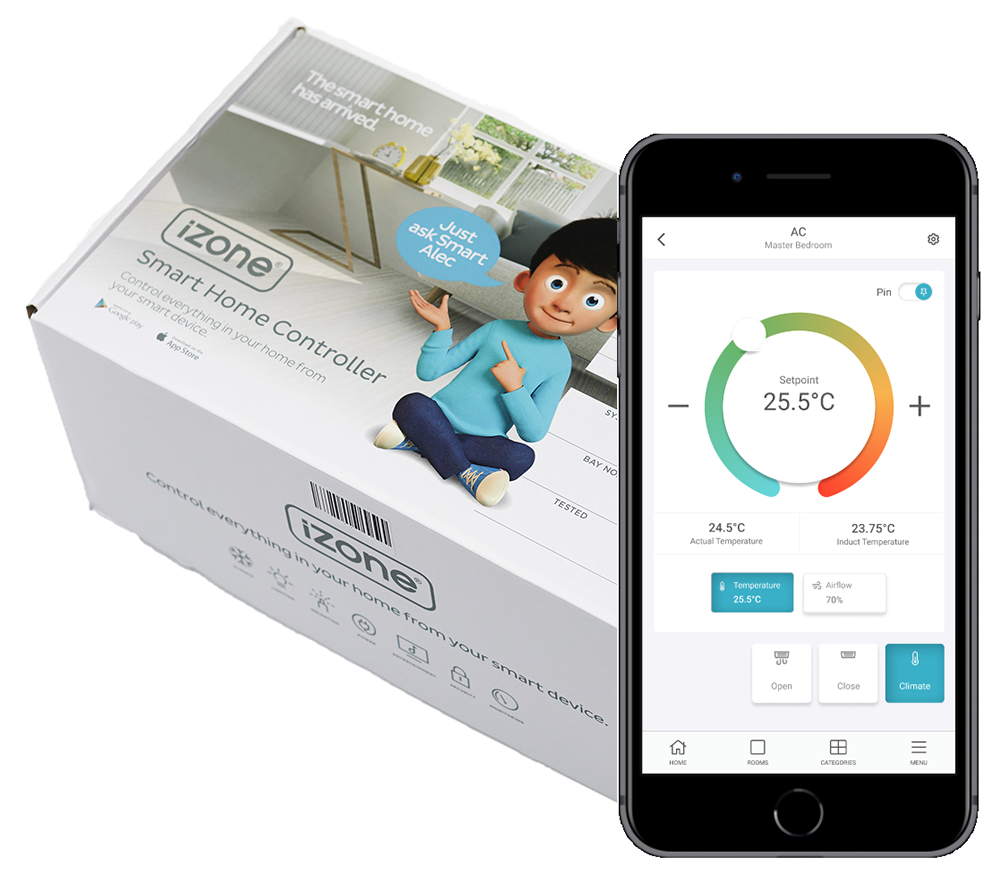

Naked 8 Zone Control Kit
Part number: C405K
Overview
The 8-zone Naked kit contains a 8-zone CPU module (C225), 24VAC transformer and Smart Hub (COCBH). No wall controller is included and the system is commissioned and operated with a mobile device. Refer to the 6-zone Naked Kit (C155K) for a more cost effective solution if less than 6 zones are required.
Installation Guides
User Guides
Parts Included
| Part | Description |
|---|---|
| C225 | 8-zone CPU |
| CT24ACE | 24Vac CPU power supply |
| COCBH | Smart Hub |
Support
- For troubleshooting, refer to the Parts Included section.
- For frequently asked questions (FAQs), visit the Support Zone.
- For design guidance and best practices, see the How to Guides.
Specifications
| Entry | Description |
|---|---|
| Dimensions | 320W x 140H x 300D mm |
| Weight | 3.120kg |
